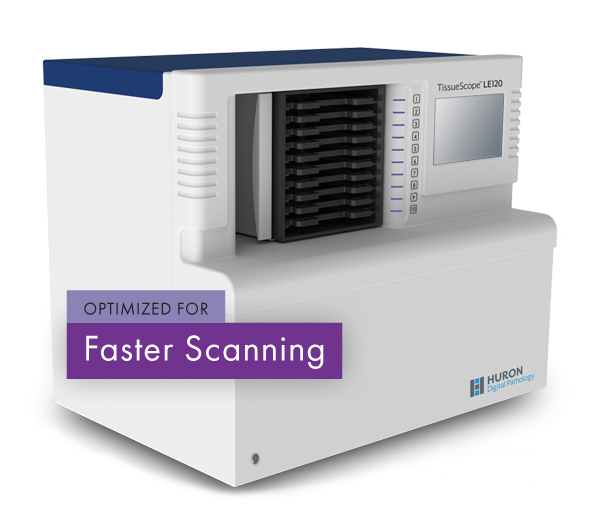

TissueScope LE120 Slide Scanner
The best in volume slide scanning, only better
Newly redesigned, the TissueScope LE120 is perfect for labs that require best-in-class image quality with higher throughput. The versatile slide scanner accommodates ten slide holders, allowing for continuous scanning of up to 120 brightfield slides at once. Or mix and match slide formats – 1” x 3”, 2” x 3”, or any size up to 6” x 8”.

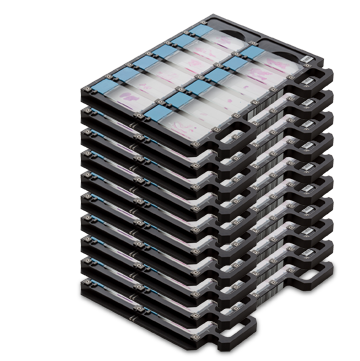

Easily scan up to 120 standard or 60 double-wide slides, or even larger slides up to 6" x 8"
Mix and match slide formats – in the same scanner
1″ x 3″ Slides
2″ x 3″ Slides
Whole Mounts Slides up to 6″ x 8″
Key Features
Throughput: 85 slides per hour (<30 seconds per slide) 15mm x 15mm @ 40X magnification
Sharp, clear image quality up to 40X magnification
Scan up to 120 brightfield slides continuously with automatic setup and non-stop operation
Scan standard 1″ x 3″ and 2″ x 3″ slides as well as any size up to 6″ x 8″
Z-Stack Scanning
Image-based barcode reading
Non-proprietary file format, DICOM compatible
Optimize workflow with TissueSnap preview station
Images immediately available for viewing after scanning
Integrates with the SlideVault™ Image Management System
Technical Specifications
Imaging Mode
Brightfield
Slide Formats
25mm x 75mm (1″ x 3″)
50mm x 75mm (2″ x 3″)
Any slide up to 150mm x 200mm (6″ x 8″)
Optical Resolution
0.75 NA
Resolution (µm/pixel)
0.25 at 40X
0.5 at 20X
Scan Speed
85 slides per hour (<30 seconds per slide) 15mm x 15mm @ 40X magnification
File Format
Non-proprietary 24-bit RGB Pyramidal BigTIFF
Uncompressed, JPEG or JPEG 2000 Compression
Export to JPEG, Flat TIFF and LZW Compressed TIFF
Dimensions & Weight
89.0cm (35.0″) Width
60.5cm (23.8″) Length
74.5cm (29.3″) Height
77Kg (170lbs) Weight
Certification
CSA/UL
Warranty
One year
Bundle image management, analysis, and workflow.
Image Management.
Add SlideVault to your TissueScope LE120 scanner for a complete slide scanning and management solution.
Image Analysis.
We have partnered with the leading image analysis software vendors to provide image analysis solutions for both clinical and research.
Workflow Optimization.
The TissueSnap works with TissueScope scanners to offload time consuming tasks to optimize throughput and performance.
Our Partners
Please contact [email protected] for information on the use of the product in your facility. The regulatory status of the product differs by country/region.
TissueScope™, TissueSnap™ and Huron Digital Pathology™ are trademarks of Huron Technologies International Inc. The TissueScope™ scanner is based on one or more of the following: U.S. Patents 8,896,918 B2/ 8,655,043 B2/ 9,632,301/ 9,804,376 B2/ 9,575,304/ 10,114, 206/ 9,575,308/ 10,088,655/ 6,072,624;EU patents EP2758825 (A1)/ EP EP2656133 (A1)/ EP2864741 (A1); U.S. and International patents pending. Manufactured by Huron Technologies International Inc., of which Huron Digital Pathology is an operating division.
