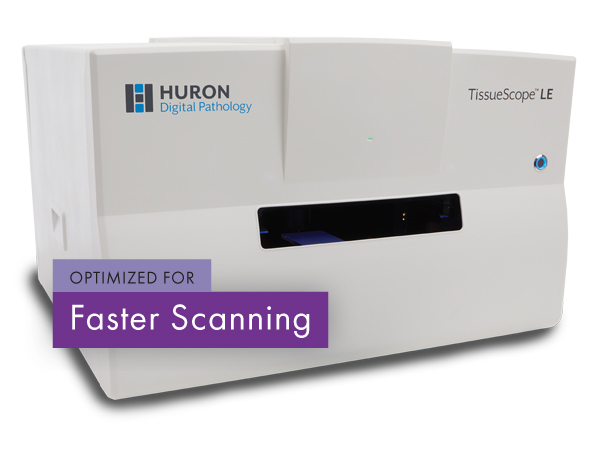

TissueScope™ LE Slide Scanner
The best in whole slide imaging, only better.
Newly redesigned, the award-winning TissueScope LE scanner sets the standard for versatility, throughput, and ease of use. Scan up to twelve 1” x 3” brightfield slides, up to six 2” x 3” slides, or any size slide up to 6”x 8”.
Mix and match – standard to whole mount.
1″ x 3″ Slides
2″ x 3″ Slides
Any side slide up to 6″ x 8″
Need Higher Volume?
Our TissueScope LE120 offers the same great image quality and versatility as the TissueScope LE, but with higher slide capacity. Each of the scanner’s 10 slide holders accommodates up to twelve 1″ x 3″ slides, allowing for continuous scanning of up to 120 brightfield slides at once.
TissueScope LE Key Features
Easy to use
Fast: <1 minute per slide, 15mm x 15mm @20X
Sharp, clear image quality up to 40X magnification
Scan up to twelve standard 1″ x 3″slides, or any size up to 6″ x 8” for unmatched versatility
Image-based barcode scanning
Pair with the TissueSnap preview station for enhanced workflow optimization
TissueScope LE Technical Specifications
25mm x 75mm (1″ x 3″)
50mm x 75mm (2″ x 3″)
Whole mount slides up to 150mm x 200mm (6″ x 8″)
0.2 at 40X
0.4 at 20X
<1 minute per slide, 15mm x 15mm @20X magnification
Non-proprietary 24-bit RGB Pyramidal BigTIFF
Uncompressed, or JPEG 2000 Compression
Export to JPEG, Flat TIFF and LZW Compressed TIFF
Dimensions & Weight
61cm (24.1″) Width
56cm (22.2″) Length
40cm (15.9″) Height
39Kg (85lbs) Weight
Bundle image management, analysis, and workflow.
Add the Huron Image Manager to your TissueScope LE scanner for a complete slide scanning and management solution.
We have partnered with the leading image analysis software vendors to provide image analysis solutions for both clinical and research.
The TissueSnap works with TissueScope scanners to offload time consuming tasks to optimize throughput and performance.
In Canada, TissueScope LE is licensed by Health Canada for in vitro diagnostic use. In the European Union, TissueScope LE is CE Marked under the European Union’s ‘In Vitro Diagnostics Directive’ for in-vitro diagnostic use. In other countries, TissueScope LE is intended for research and educational purposes only. European Authorized Representative for Medical Devices: Emergo Europe BV, Prinsessegracht 20, 2514 AP, The Hague, The Netherlands. TissueScope™, TissueSnap™ and Huron Digital Pathology™ are trademarks of Huron Technologies International Inc. The TissueScope™ scanner is based on one or more of the following: U.S. Patents 8,896,918 B2/8,655,043/7,218,446 B2 / 6,072,624; EU patent 2758825; U.S. and International patents pending. Manufactured by Huron Technologies International Inc., of which Huron Digital Pathology is an operating division.
